TrimLineSeries™ HPL 1030

Suitable for low to moderate budgets, TrimLineSeries offers a wide range of colors and finishes, stainless steel edge trim and added durability from standard steel core stiles. Bobrick offers a 5-year limited warranty on TrimLineSeries.

JUMP TO: DETAILS   |   STEPS TO SPEC   |   RESOURCES

Design & Durability with an Edge

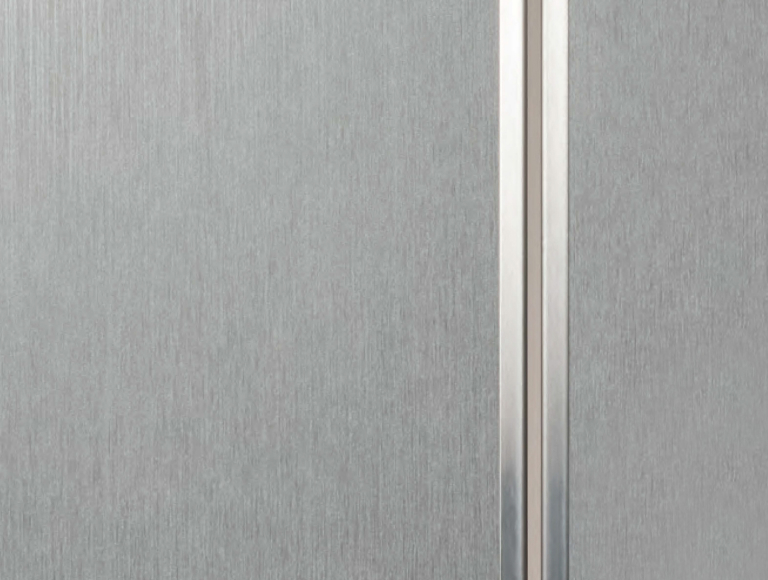

While TrimLineSeries’s stainless steel edge trim provides protection and quality, its standard steel core stiles provide additional reinforcement, ensuring durability to complement a wide range of colors, patterns and woodgrains.

Applications

TrimLineSeries is suitable for low-to-moderate budget projects, including:

  • Schools and universities
  • Mass transit
  • Standard offices
  • Industrial facilities

For projects with lower budgets, DesignerSeries™ HPL offers performance and design options similar to TrimLineSeries, without stainless steel edge trim.

Standard Features

  • 1 High Pressure Laminate (HPL) doorsstiles and  panels
  • Impact and graffiti-resistant.
    Learn More About Our HPL >
  • ASTM E 84 Fire Rating: Class B
  • Standard steel core stiles
  • Stainless steel edge trim
  • Wide selection of colors and patterns

Standard Hardware

TrimLineSeries HPL is outfitted with Bobrick’s standard Traditional Partitions stainless steel hardware package

  • Standard concealed stainless steel barrel hinges adjust for partial opening or self-closing
  • Stainless steel bracketslatch and keeper

Material Pricing & Lead Time 

Price Index based on relative scale of $ to $$$$$. Price and lead time estimates apply only to standard color selection.

  • TrimLineSeries HPL
    Price Index: $$
    Lead Time: 20 days

To compare pricing and lead time estimates across all Bobrick Traditional Partitions, explore Traditional Partitions

Learn about our RapidResponse® Program & FastColor™ >

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick cubicles and partitions, follow Steps to Spec, our consistent methodology for customizing your design. Use the links below to explore each step.

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick cubicles and partitions, follow Steps to Spec, our consistent methodology for customizing your design. Use the links below to explore each step.

Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options

Select Design Options

Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options



Select Design Options



Customize your TrimLineSeries HPL partitions with Height Options. Download Privacy Brochure >

Height Options

Option Door & Panel Height Floor Clearance Model Number
Standard  58  12  1030
Maximum  72  4 ⁵/₁₆  2030

For Extended Heights, choose DuraLineSeries® CGL or SierraSeries® SCRC.

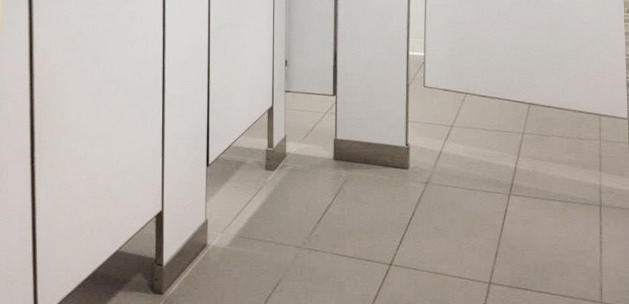

Standard Height partitions

Gaps

Option Features Model Number
Standard Reduced-Gap

Hinge or Keeper gaps:
± 3/32″
Wall gaps:
1/2″ to 1″

1030 or 2030

Bobrick’s Standard Reduced-Gap

Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

TrimLineSeries HPL

Select Privacy Options



Select Design Options



Complete your TrimLineSeries HPL design by choosing your Hardware Options, Mounting Configuration, Colors, Patterns and Woodgrains and adding Dividers & Screens

Hardware

TrimLine’s standard concealed stainless steel hardware package includes barrel hinges, latch and keeper, bracket, coat hook, inswing door hardware and/or outswing door pull. Optimize your design with the options below.



  • Heavy duty full height stainless steel brackets. Add .65 suffix to 1030 or 2030.
  • Occupancy Indicator Latch. Part number 1002612.

Standard concealed stainless steel hardware package includes barrel hinges, latch and keeper, bracket, coat hook, inswing door hardware and/or outswing door pull.

Standard stainless steel latch and keeper (left); occupancy indicator latch and keeper (right)

Standard stainless steel bracket (left); heavy duty full-height bracket (right)

Mounting Configurations

Mounting Model Number
Floor-Anchored   1031 (Standard Height) 
2031 (Maximum Height)  
Overhead-Braced  1032 (Standard Height) 
2032 (Maximum Height)    
Floor-to-Ceiling  1036 (Standard Height) 
2036 (Maximum Height)  
Ceiling-Hung   1038 (Standard Height) 
2038 (Maximum Height)  

Overhead-Braced

Ceiling-Hung

Floor-Anchored

Floor-to-Ceiling

Colors, Patterns & Woodgrains

TrimLineSeries HPL is available iwide range of colors, patterns and woodgrains.

Download HPL Color Guide >

Click to view the HPL Color Guide

Dividers & Screens

TrimLineSeries dividers and screens are available in various mounting configurations. Refer to the model number guide below when specifying.

Options Dressing Compartments Urinal Screens
Overhead-Braced 1032
Floor-to-Ceiling  1031
Post-to-Ceiling  1033
Wall-Hung  1035
Ceiling-Hung  1038

Overhead-braced dressing compartments can be furnished with shower curtains, curtain track and hooks concealed in headrail.

Coordinate urinal screens and dressing compartments with toilet partitions. Select Solid Color Reinforced Composite or Solid for wet areas.
