New Product

B-540

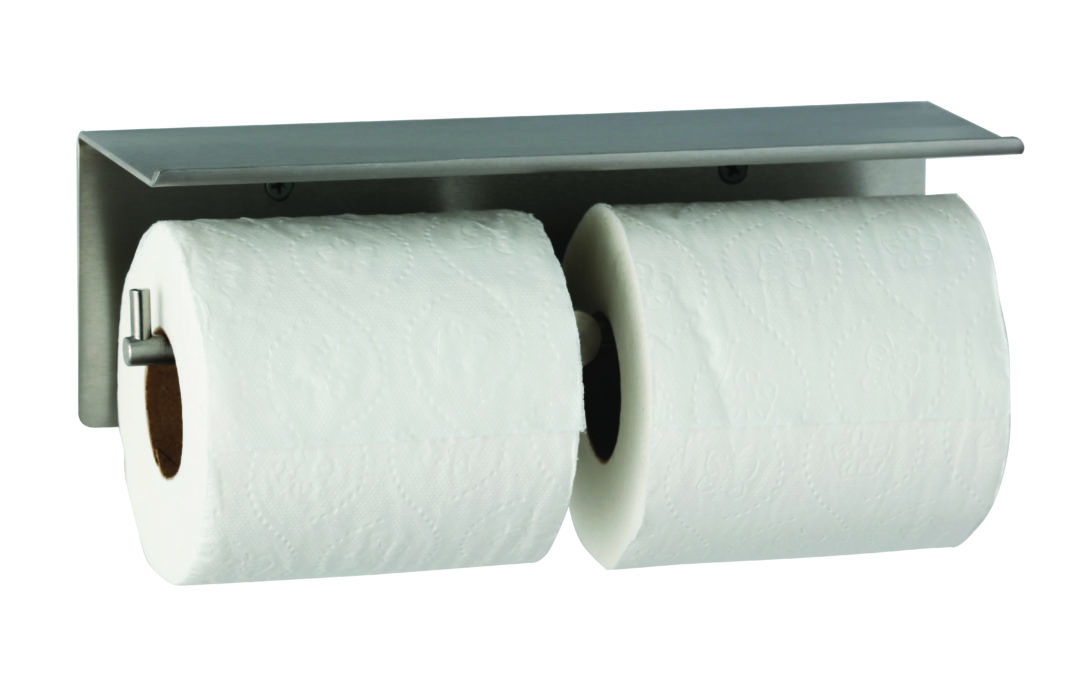

Surface-Mounted Toilet Tissue Dispenser & Utility Shelf

Type-304, 1.2 mm (14 gauge) stainless steel with satin finish. Shelf shall have 6 mm (1/4″) upward return front edge. Toilet Tissue Dispenser shall have 19 mm (3/4″) diameter Post. Dispenser bar shall be 9.5 mm (3/8″) diameter, secured to Post with a concealed set screw. Retaining pin shall be 6.4 mm (1/4″) diameter and pressed into Dispenser bar. Wall Plate equipped with two screw holes for attachment. Post and Wall Plate are to be securely welded as one piece. Dispenser Bar shall hold standard-core toilet tissue rolls up to 110 mm (4-1/2″) diameter (500 sheets).

*Available in matte black finish.

Technical Data Sheet

Accessory Options & Replacement Parts

Ordering Replacement Parts

Bobrick is here to help you keep your products in good working order with the right Replacement Parts for products installed in your building. We invite you to find the part you need here.
