PRIVADA® Cubicles

PRIVADA Cubicles offer the elevated aesthetics, functionality and privacy that the most discerning restroom patrons have come to expect. Ideal applications include prestige projects, such as Class A offices and high-end hospitality.

Hands-Free Latch

Our Hands-Free Latch gives patrons the peace of mind they are reducing contact with public surfaces. Hands-Free latch can be retrofitted on installed latches.

Elevated Design. Educated Decision.

PRIVADA makes a sophisticated design statement, with thoughtfully crafted, minimalist hardware, an invisible aluminum frame and a signature “floating” effect enabled by recessed foot pedestals. Available through limited distribution.

GET PRIVADA


Applications

  • Class A offices
  • Marquee properties
  • Premium restaurants
  • VIP lounges and suites

Class A Office Spotlight
A global, publicly traded bank put PRIVADA at the center of a restroom renovation at their headquarters. See how PRIVADA delivered a private, exclusive experience for employees and transcended a typical commercial look.

Standard Features

  • 1″ High Pressure Laminate (HPL) or Wood Veneer Laminate doors and panels
    Select a Material >
  • ASTM E 84 Fire Rating: Class B
  • Invisible, overhead-braced aluminum frame
  • Interlocking doors and fascias eliminate sightlines and form flush surfaces
  • Occupancy indicators inform patrons when compartments are in use

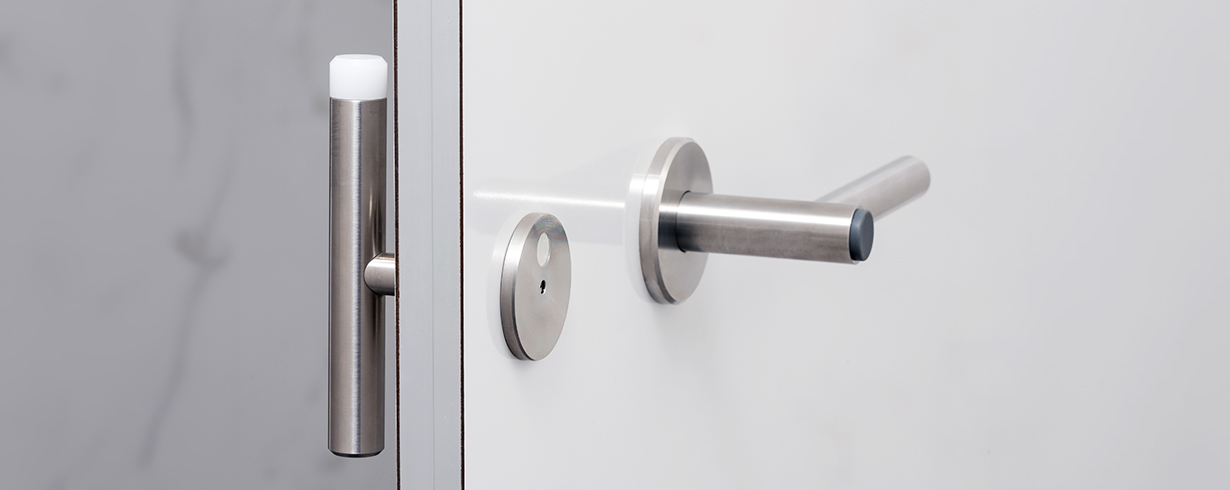

Standard Hardware

PRIVADA’s minimalist hardware makes a sophisticated design statement. Stainless steel door hardware with concealed fasteners and connection points come standard.

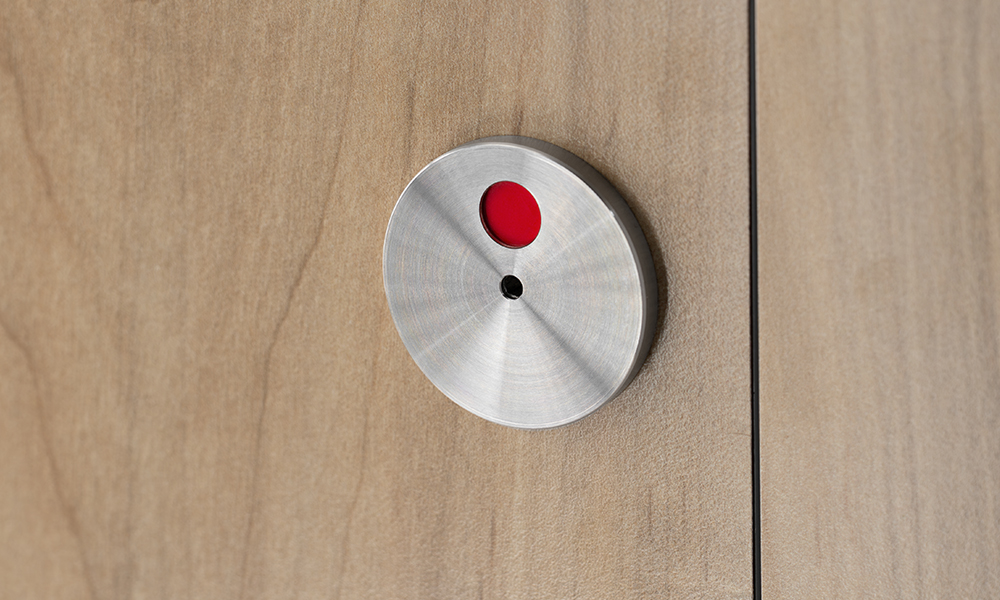

  • Occupancy indicator with emergency access release
  • Latch and keeper locks provide confirmation that the lock is in place

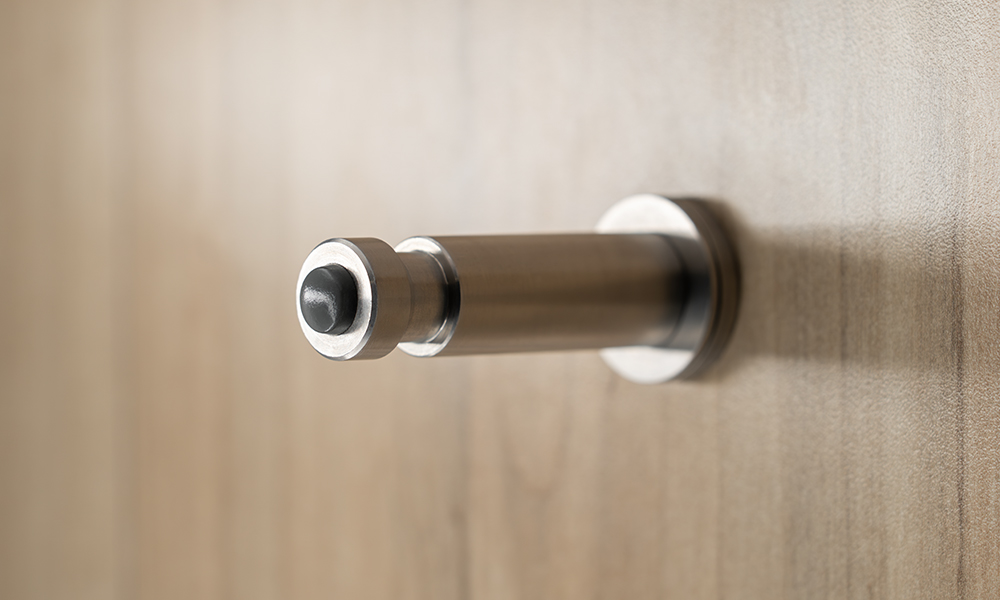

  • Coordinated hook incorporates door-bumper

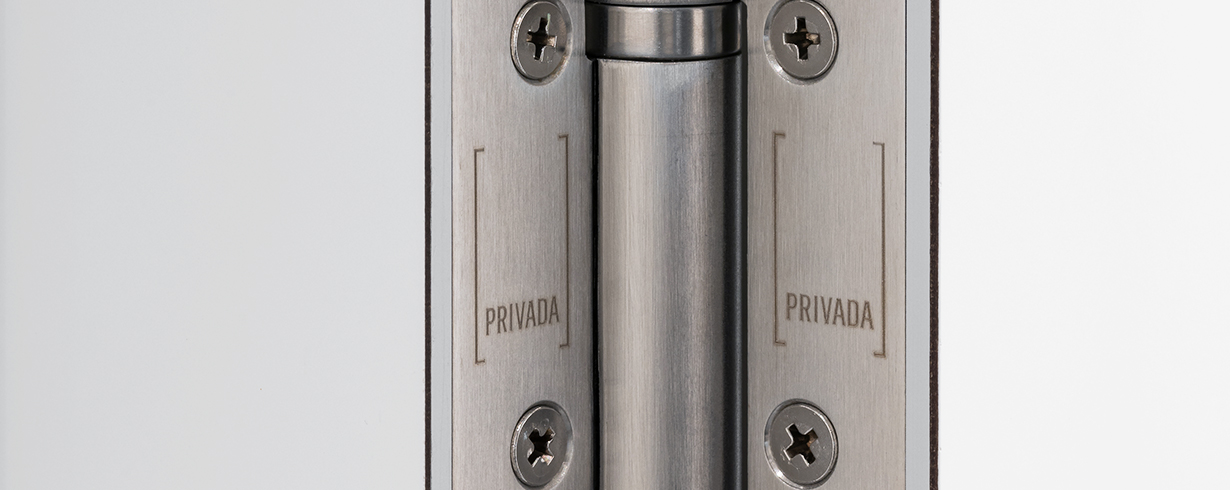

  • Hinge actuates self-closing doors to provide a smooth, gradual closing speed
  • Durable anodized aluminum foot pedestals

Material Pricing & Lead Time

PRIVADA is available through limited distribution. Price Index based on relative scale of $ to $$$$$. Price and lead time estimates apply only to standard color selection.

  • HPL
    Price Index: $$$$
    Lead Time: 6-8 weeks
  • Wood Veneer Laminate
    Price Index: $$$$$
    Lead Time: 10-12 weeks

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick partitions, follow Steps to Spec, our consistent methodology for customizing your design.
Use the links below to select another step.

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick cubicles and partitions, follow Steps to Spec, our consistent methodology for customizing your design. Use the links below to explore each step.

Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options

Select Design Options

Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Choose from High Pressure Laminate (HPL) and a wide range of Wood Veneer Laminates.

High Pressure Laminate

PRIVADA can be fabricated with any finish offered by Wilsonart®, Formica® or by other HPL manufacturers upon request.

  • High-pressure laminated plastic with a 45 lb density, industrial grade, resin-impregnated particle board substrate
  • ASTM E 84 Fire Rating: Class B

Learn More About Our HPL >

Choose colors, patterns and woodgrains in Design Options.

HPL woodgrain shown in Sterling Ash by Wilsonart. Read Case Study >

Wood Veneer Laminate

Specify real Wood Veneer Laminates from Veneer-Art for a premium look and feel.

  • High-pressure laminated plastic with a 45 lb density, industrial grade, resin-impregnated particle board substrate
  • ASTM E 84 Fire Rating: Class B
  • Divider panels over 48″ will have seams due to veneer material width

Learn More About Our Wood Veneer Laminate >

Choose woodgrains in Design Options.

Wood Veneer Laminate shown in Weathered Teak by Laminart. Read Case Study >

Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Customize cubicle height to your project needs by selecting Standard or Extended Height.

Height Options

Option Door & Panel Height Floor Clearance
Standard 72″ 9″
Extended Up to 96″ 4″

Standard Height shown in Platinum D315-60 by Formica

Extended Height shown in White Microdot by Formica

Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Select A System

PRIVADA Cubicles

Select A Material

Select Privacy Options



Select Design Options



Complete your PRIVADA design by upgrading your pedestal finish, selecting a color, pattern or woodgrain, and adding Urinal Screens or Dressing Compartments.

Hardware

Stainless steel door hardware with concealed fasteners and connection points come standard on PRIVADA.

PRIVADA offers an unparalleled hygienic experience with our optional hands-free latch. View it now.

PRIVADA’s standard hardware includes occupancy indicator latch, keeper locks, coordinated hook with door-bumper, hinge and standard anodized aluminum foot pedestal.

Reduce contact with public surfaces with a larger surface area that allows for elbows and wrists to operate the latch for a more hygienic experience. See it in action.

Finish Option

Standard PRIVADA Cubicles come with durable, anodized aluminum pedestals, stainless steel pedestals are available with applicable upcharge.

Standard Height cubicles come with 9″ pedestals, while Extended Height comes with 4″ pedestals, either option in chosen finish.

Standard aluminum pedestal shown in Standard Height for 9″ floor clearance (left) and Extended Height for 4″ floor clearance (right)

Upgraded stainless steel pedestal shown in Standard Height for 9″ floor clearance (left) and Extended Height for 4″ floor clearance (right)

Colors, Patterns & Woodgrains

Choose from a range of distinctive finishes based on your material selection of HPL or Wood Veneer Laminate.

HPL Color Guide >

Click to view the HPL Color Guide

Urinal Screens & Dressing Compartments

Add PRIVADA floor-anchored urinal screens or dressing compartments, with finishes and hardware to match your cubicle design.

Urinal Screen shown in Sterling Ash by Wilsonart.
