DesignerSeries™ HPL 1040

Suitable for budget projects, DesignerSeries offers a wide range of colors and finishes, with added durability from standard steel core stiles. Bobrick offers a 2-year limited warranty on DesignerSeries.

JUMP TO:  DETAILS  |  STEPS TO SPEC RESOURCES

Design Plus Durability

Great aesthetics don’t need to come at the expense of durability or affordabilityDesignerSeries’s standard steel core stiles provide additional reinforcement, ensuring durability to complement laminated High Pressure Laminate (HPL) edges and a wide range of colors, patterns and woodgrains.

Applications

DesignerSeries is suitable for budget projects, including:

  • Schools and universities
  • Mass transit
  • Standard offices
  • Industrial facilities

Standard Features

  • 1″ High Pressure Laminate (HPL) doorsstiles and  panels
  • Impact and graffiti-resistant.
    Learn More About Our HPL >
  • ASTM E 84 Fire Rating: Class B

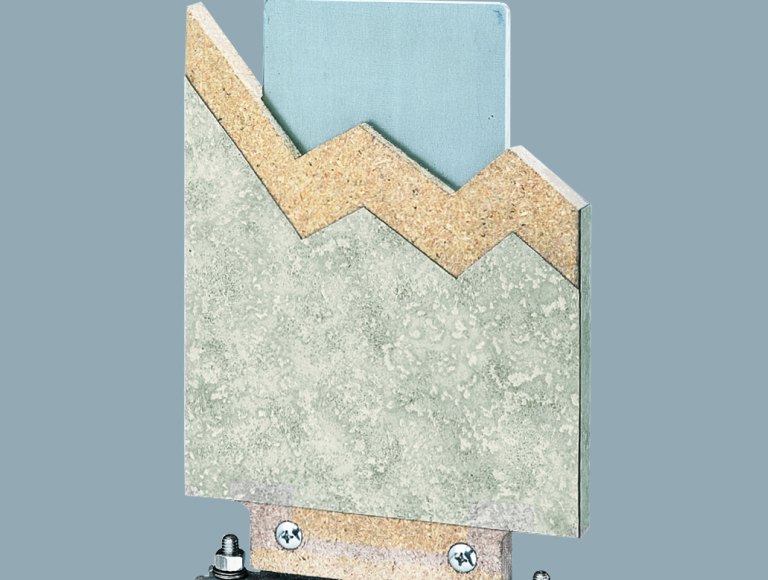

  • Standard steel core stiles
  • Laminated HPL edges
  • Wide selection of colors and patterns

Standard Hardware

DesignerSeries HPL is outfitted with Bobrick’s standard Traditional Partitions stainless steel hardware package

  • Standard concealed stainless steel barrel hinges adjust for partial opening or self-closing
  • Stainless steel bracketslatch and keeper

Material Pricing & Lead Time 

Price Index based on relative scale of $ to $$$$$. Price and lead time estimates apply only to standard color selection.

  • DesignerSeries HPL
    Price Index: $$
    Lead Time: 10 days

To compare pricing and lead time estimates across all Bobrick Traditional Partitions, explore Traditional Partitions.

Learn about our RapidResponse® Program & FastColor™ >

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick cubicles and partitions, follow Steps to Spec, our consistent methodology for customizing your design. Use the links below to explore each step.

Steps to Spec

Bobrick cubicles and partitions are made-to-order products. To specify Bobrick cubicles and partitions, follow Steps to Spec, our consistent methodology for customizing your design. Use the links below to explore each step.

Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options

Select Design Options

Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options



Select Design Options



Customize your DesignerSeries HPL partitions with Height Options. Learn more information about our Privacy selections >

Height Options

Option Door & Panel Height Floor Clearance  Model Number
Standard 58 12  1040
Maximum  71 ¾  4 ½  2040

For Extended Heights in HPL, choose PRIVADA® Cubicles
For Extended Heights in Traditional, choose DuraLineSeries® CGL or SierraSeries® SCRC.

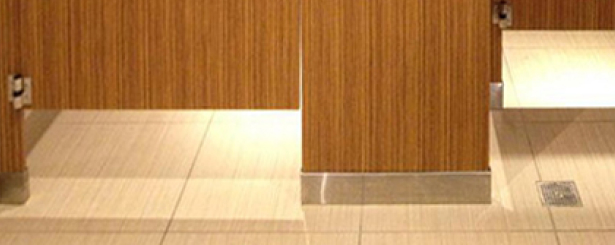

Standard Height Paritions

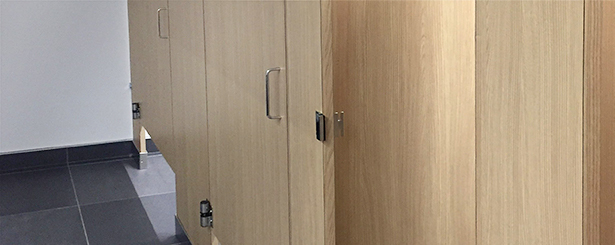

Maximum Height Partitions

Gaps

Option Features Model Number
Standard Reduced-Gap

Hinge or Keeper gaps:
± 3/32″

Wall gaps:
1/2″ to 1″

1040 or 2040

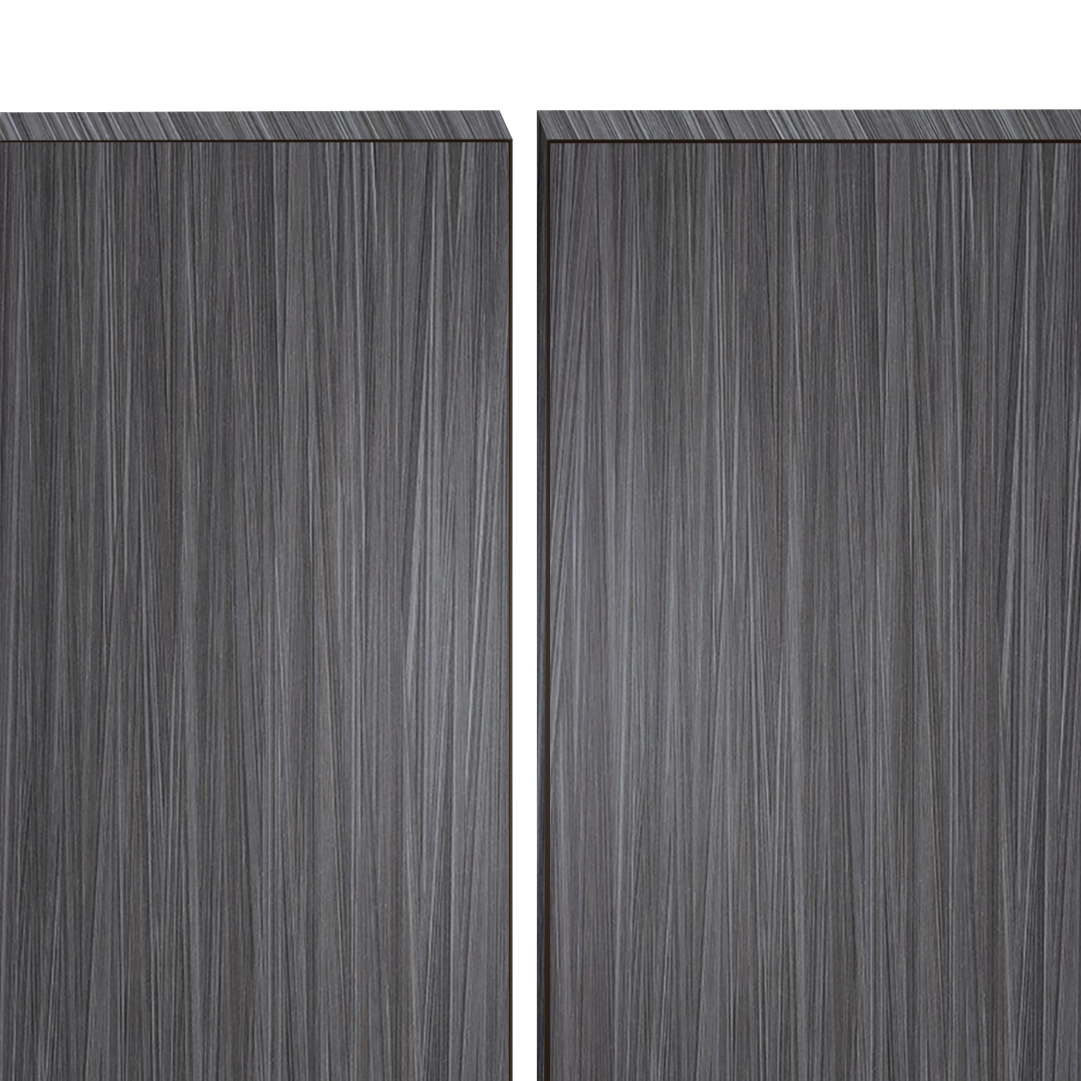

Bobrick’s Standard Reduced-Gap

Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options



Select Design Options



Select A System

Traditional Partitions

Select A Material

DesignerSeries HPL

Select Privacy Options



Select Design Options



Complete your DesignerSeries HPL design by choosing your Hardware Options, Mounting Configuration, Colors, Patterns and Woodgrains and adding Dividers & Screens

Hardware

DesignerSeries’s standard concealed stainless steel hardware package includes barrel hinges, latch and keeper, bracket, coat hook, inswing door hardware and/or outswing door pull. Optimize your design with the options below.

  • Heavy duty full height stainless steel brackets. Add .65P suffix to 1040 or 2040.
  • Occupancy Indicator Latch. Part number 1002612.

Standard concealed stainless steel hardware package includes barrel hinges, latch and keeper, bracket, coat hook, inswing door hardware and/or outswing door pull.

Standard stainless steel latch and keeper (left); occupancy indicator latch and keeper (right)

Standard stainless steel bracket (left); heavy duty full-height bracket (right)

Mounting Configurations

DesignerSeries HPL are available in various mounting configurations. Refer to the model number guide below when specifying.

Standard Privacy
58″ doors & panels and 12″ floor clearance.

Standard Privacy Mounting Model Number
Floor-Anchored 1041
Overhead-Braced 1042
Floor-to-Ceiling 1046
Ceiling-Hung 1048

Maximum Privacy
71 ¾″ doors & panels and 4 ½″ floor clearance.

Maxiumum Privacy Mounting Model Number
Floor-Anchored 2041
Overhead-Braced 2042
Floor-to-Ceiling 2046
Ceiling-Hung 2048

Standard Privacy: Floor-Anchored

Standard Privacy: Overhead-Braced

Standard Privacy: Floor-to-Ceiling

Standard Privacy: Ceiling-Hung

Maximum Privacy: Floor-Anchored

Maximum Privacy: Overhead-Braced

Maximum Privacy: Floor-to-Ceiling

Maximum Privacy: Ceiling-Hung

Colors, Patterns & Woodgrains

DesignerSeries HPL is available iwide range of colors, patterns and woodgrains.

Download HPL Color Guide >

Click to view the HPL Color Guide

Dividers & Screens

DesignerSeries HPL dividers and screens are available in various mounting configurations. Refer to the model number guide below when specifying.

Options Dressing Compartments Urinal Screens
Floor-Anchored 1041
Post-to-Ceiling 1043
Wall-Hung 1045
Ceiling-Hung 1048

Coordinate urinal screens and dressing compartments with toilet partitions. Select Solid Color Reinforced Composite or Solid for wet areas.
